GGORT-A 1 output RF in edfa amplifier c band
Short Description:
GGORT-A 1 output RF in edfa amplifier c band
Description:

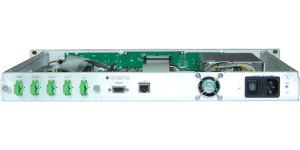

GGORT-A indoor RF EDFA is a cost saving equipment and special designed space saving for headend system. Low loss splitter assure high standard output power for each output port; seperate CPU and PCB board and receptacle Pump Box to assure that users are free from after-sale problems.
High power pump laser / laser diode provide excellent non-linear, low noise figure, which ensure a satisfied system performance.
Advantages:
1. 980nm / 1480nm pump lasers available
2. High power, low noise figure
3. EDFA output 13-26 dBm, 1/2/4 ports optional
4. CPU monitoring, LCD display
5. RS232 interface optional
Specifications
| Electric Parameter: | ||||||||||||||
| network Connector | RD232 / RS485 or USB optional | |||||||||||||
| Power Consumption | < 30 watt | |||||||||||||
| Power Supply | 220V (110-265V/50Hz) | |||||||||||||
| Optical Parameter: | ||||||||||||||
| Pump Laser Type | DFB | |||||||||||||
| Optical Wavelength | 1550±15nm | |||||||||||||
| Input Optical Power | -3~+10 | |||||||||||||
| Output Optical Power (EDFA) | 13~26dBm @0dBm input power output power (Tx) 2~10mW | |||||||||||||
| Optical Output Power Stability | ≤ ±0.3 | |||||||||||||
| PDG | ≤ 0.3dB | |||||||||||||
| PMD | ≤ 0.3PS | |||||||||||||
| Input Optical Leak | ≤ -30dB | |||||||||||||
| Output Optical Leak | ≤ -30dB | |||||||||||||
| Optical Return Loss | ≥ 60dB | |||||||||||||
| Optical Connector | FC/APC or SC/APC optional | |||||||||||||
| Path Parameter-1: | ||||||||||||||
| Power | 13dB 14dB | 15dB 16dB | 17dB 18dB | 19dB 20dB | 21dB 22dB | 23dB 24dB | 25dB 26dB | |||||||
| Pin=0dBm R/N Noise |
3.8 |
3.9 |
4 |
4.1 |
4.2 |
4.3 |
4.4 |
|||||||
| Path Parameter-2: | ||||||||||||||
| Input Power |
7 |
6 |
5 |
4 |
3 |
2 |
1 |
0 |
||||||
| CNR (dB) |
52.5 |
52.5 |
51.9 |
51.6 |
51.2 |
50.8 |
50.3 |
49.7 |
||||||
| Environment Parameter | ||||||||||||||
| Storage Temperature | -20℃~+70℃ | |||||||||||||
| Humidity | ≤80% | |||||||||||||
| Op.T.Humidity | 0℃~+50℃ 5%~ 70% | |||||||||||||
| 0℃~+50℃ ≤ 95% Non-acidity | ||||||||||||||
| Dimension | L480mm*W380mm*H45mm | |||||||||||||
| Weight | 5.0 khs (Max) | |||||||||||||
