4K 2K HDMI Splitter 1 to 16
Short Description:
The 1×16 HDMI Splitter uses a single HDMI source，accessing to multiple HDMI sinks.It allows one HDMI device to be split easily to sixteen HDMI compatible monitors or projectors. The Splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.Resolution up to 3840X2160/30Hz.
FEATURES
lSupport HDMI 1.4b
lSupport 3D video format
lResolution up to 3840×2160/30Hz
lSupport 3.2Gbps data rate for TMDS clock up to 320MHz
lSupport deep color 8/10/12bit
lsupport AWG26 HDMI standard cable:
when the resolution is 1080p and below, input up to 15 meters,output up to 25 meters.
when the resolution is 4K, input up to 12 meters, output up to 15 meters.
lSupport displaying single source, multi-output high-definition signal source from DVD player A / V receiver, set-top box
Need DC 12V/5A power supply
SPECIFICATIONS:
HDMI version…………………………………………………..………………………………………………………………… HDMI 1.4b
HDMI resolution ……………………………….. ……….. ……………..……………………………………up to 3840*2160/30Hz
Support video color format ………….………..………………..……………………………….……… deep color 8/10/12bit
Support audio format………..……………..……….……………………… DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth…………………..………………..…………………………………………..……………………………………320MHz
Max transmission bandwidth…….…………..…………….………………………………..…………………………………3.2Gbps
Input cable distance.…………………………….(1080p resolution) ≤15m,(4K resolution)≤12m AWG26 HDMI standard cable
Output cable distance…………………………(1080p resolution) ≤25m,(4K resolution)≤15m AWG26 HDMI standard cable
HDMI input ………….………..…………..…………..……….…………..………….……..………………………………………………1
HDMI output………………………..…………..………………..…………..………………..…………………………………………… 16
Max working current…………………………………………………..…………………………………………….…………………2.15A
Power adapter format ……………………………………Input:AC (50HZ, 60HZ) 100V-240V; Output: DC12V/5A
Operating Temperature range……..……………..………………………………………………………………… (-15 to +55℃)
Operating Humidity range………………………………….……….…………………………5 to 90%RH (No Condensation)
Dimension (L x W x H)………………………………..………..……………………………………………………460x150x40 (mm)
Weight…..………………………………………..…..…………..……….……………………….……………………………………1680g

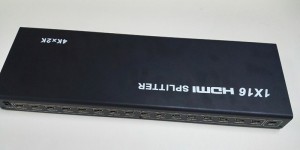

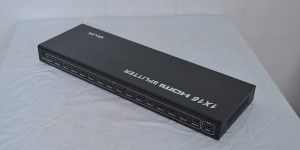

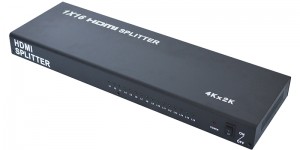

Product Picture:

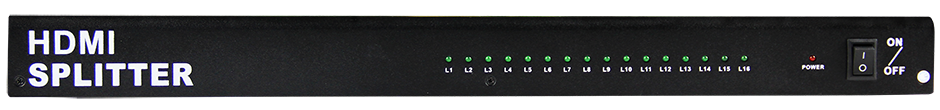

Interface Picture:
